Model Number : RHY035
Certification : ISO9001
Place of Origin : China
MOQ : 1000
Price : US $ 8.24
Payment Terms : T/T
Delivery Time : 31-35 work days
Packaging Details : 10.5*13.3*5.3(cm)
Name : TFT LCD Modules
LCD size : 3.5 inch
Outline Dimension : 54.5 * 83 * 2.34 mm
Display area : 48.96 * 73.44 mm
Number of Pixel : 320 * 480 pixels
Brightness : 300 cd/m²
Interface : 45 PIN MCU
Viewing Angle : EWV
| Display Size | 3.5 inch |
| Dimensions | 54.5 × 83 × 2.34 mm |
| Active Area | 48.96 × 73.44 mm |
| Resolution | 320 × 480 pixels |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
|
|

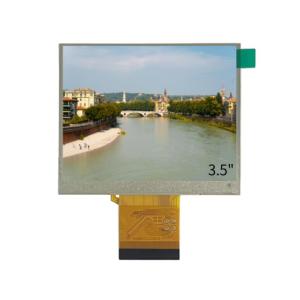

300 Nits TFT LCD Modules 3.5 Inch LCD Display 320x480 Resolution With MCU Interface Images |
