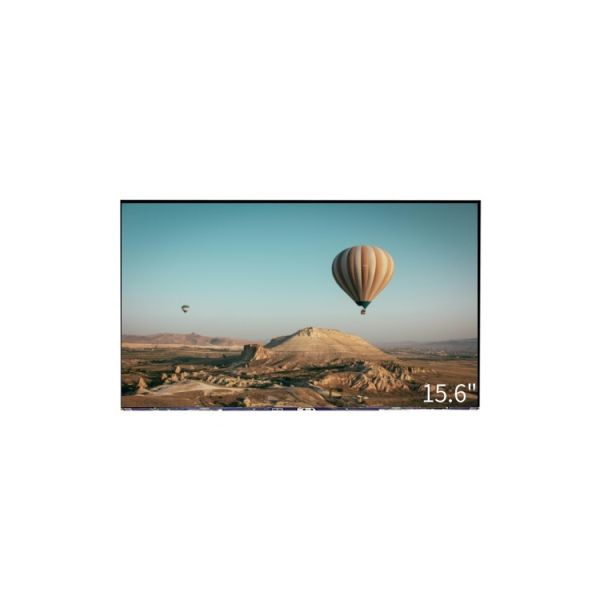

15.6 Inch HD TFT LCD Display IPS LCD Screen Panel 1920x1080 With EDP Interface

Brand Name : HKC

Model Number : RHY156

Certification : ISO9001

Place of Origin : China

MOQ : 1000

Price : US $ 32.41

Payment Terms : T/T

Delivery Time : 31-35 work days

Packaging Details : 42.1*27.2*5.5(cm)

Name : HD TFT LCD Display

LCD size : 15.6" TFT

Outline Dimension : 350.8 × 216.13 × 2.8 mm

Display area : 344.16 × 193.59 mm

Number of Pixel : 1920 × 1080 pixels

Brightness : 220 cd/m²

Interface : EDP

Viewing Angle : IPS

Operating Temperature : -20°C to 70°C

Storage Temperature : -30°C to 80°C

Connector Pins : 30 PIN

Contact Now

15.6 Inch IPS TFT LCD Display 1920x1080 Full HD

Technical Specifications

LCD Size	15.6" TFT
Outline Dimension	350.8 × 216.13 × 2.8 mm
Display Area	344.16 × 193.59 mm
Resolution	1920 × 1080 pixels
Brightness	220 cd/m²
Interface	30 PIN EDP
Viewing Angle	IPS (178° wide viewing angle)
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Product Features

Full HD 1920×1080 resolution for crisp, detailed images
IPS technology provides 178° ultra-wide viewing angles
99% sRGB color gamut coverage for accurate color reproduction
Displays 16.7 million vivid colors
Excellent performance in industrial monitoring and educational applications

This custom 15.6-inch IPS TFT LCD display module delivers exceptional visual performance with its full HD resolution panel. The IPS technology ensures consistent color and clarity from virtually any viewing angle, making it ideal for applications where multiple viewers need to see the screen clearly. With its high color accuracy and wide temperature range, this display is perfectly suited for demanding industrial environments, educational settings, and professional applications where reliable, high-quality visual output is essential.
